products
item: 100K90062M03
sprinkler
dry fire main
heating
cooling
fire protection
commercial building
residential
datacenters
industry
UL
ULc
LPCB
QB (CSTBat)
CNBOP
FM
label
value
label
d1
value
165.1
label
DN1
value
DN150
label
l1
value
27
label
d2
value
165.1
label
DN2
value
DN150
label
l2
value
27
item

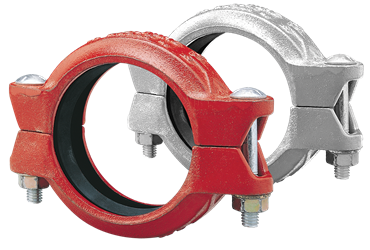

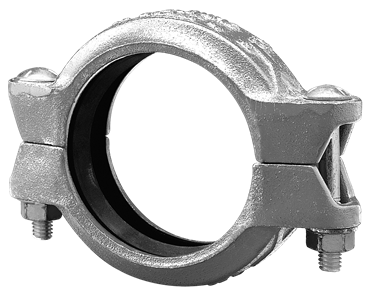

VSH Shurjoint fire rigid coupling FF 165.1 galvanized ISO
item number with gtin
100K90062M03
product number with gtin
100K90062M03 (04710574002305)
manufacturer
Shurjoint
size
165.1 (DN150) galvanized ISO
weight
2.4 kg
dimensions
53x252x197 mm
color
silver
materials
cast iron (ASTM A536 65-45-12)
finishing
hot dip galvanized
shape
straight
connection type
groove (coupling), groove (coupling)
sealing
EPDM
max operating pressure liquid
24 bar
min. medium temperature
-34 °C
max medium temperature
110 °C
product group
fittings (EPDM)
ETIM class
EC003024 Fitting with 2 connectionsbrand
VSH
series
Shurjoint
product type
K9E
label
value
label
etim-class
label
Material connection 1
value
Cast iron
label
Material quality connection 1
value
ASTM A536 Grade 65-45-12
label
Surface protection connection 1
value
Hot-dip galvanised
label
Material connection 2
value
Cast iron
label
Material quality connection 2
value
ASTM A536 Grade 65-45-12
label
Surface protection connection 2
value
Hot-dip galvanised
label
Shape
value
Straight
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Nominal diameter connection 1
value
DN 150
label
Outer pipe diameter connection 1
value
165.1mm
label
Outer pipe diameter connection 1 (imperial)
value
6.5"
label
Connection 1
value
Ribbing groove (groove coupling)
label
Nominal diameter connection 2
value
DN 150
label
Outer pipe diameter connection 2
value
165.1mm
label
Outer pipe diameter connection 2 (imperial)
value
6.5"
label
Connection 2
value
Ribbing groove (groove coupling)
label
Main colour fitting
value
Grey
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
No
label
Length
value
53mm
label
Length (imperial)
value
2.09"
label
Length of connection 1
value
26.5mm
label
Length of connection 1 (imperial)
value
1.04"
label
Length of connection 2
value
26.5mm
label
Length of connection 2 (imperial)
value
1.04"
label
Medium temperature (continuous)
value
-34°C - 110°C
label
Medium temperature (continuous) (imperial)
value
-29.2°F - 230°F
label
Max. operating pressure at 20 °C
value
24bar
label
Max. operating pressure at 20 °C (imperial)
value
348.09psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
Yes
label
LPCB quality mark
value
Yes
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
