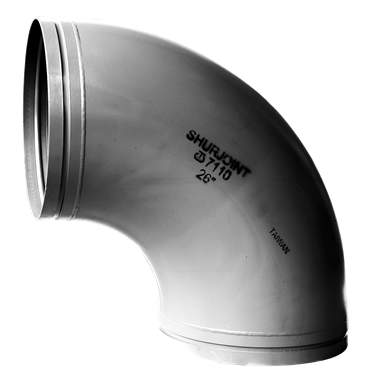

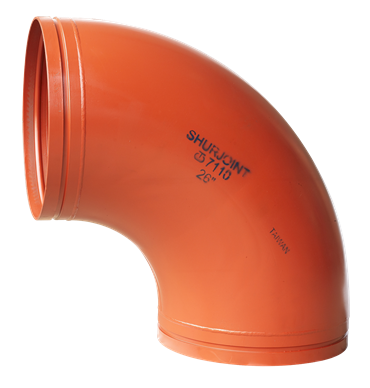

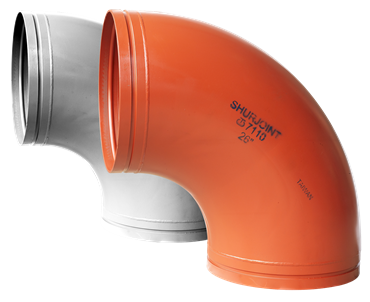

VSH Shurjoint wrought long radius 90° elbow (2 x groove)

Product Image for VSH Shurjoint wrought long radius 90° elbow (2 x groove)
Product Image for VSH Shurjoint wrought long radius 90° elbow (2 x groove)
Product Image for VSH Shurjoint wrought long radius 90° elbow (2 x groove)
  • Navigation item for VSH Shurjoint wrought long radius 90° elbow (2 x groove)
  • Navigation item for VSH Shurjoint wrought long radius 90° elbow (2 x groove)
  • Navigation item for VSH Shurjoint wrought long radius 90° elbow (2 x groove)

group: W110LR

VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
  • VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
  • the 'Aalberts integrated piping systems' range covers a fully integrated system from ¼" to 104"
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

compressed air

compressed air

show all
show less

segments

industry

industry

commercial building

commercial building

show all
show less

approvals

no approvals available

  • assortment
  • dimensions
  • specifications
  • downloads
  • ETIM
  • sustainability

item number

size

dimensions

weight

packaging

gtin

item number

1W10L00A1001

size

273 (DN250) orange

dimensions

518x518x273 mm

weight

35.4 kg

packaging

-

gtin

-

item number

1W10L00A1003

size

273 (DN250) galvanized

dimensions

518x518x273 mm

weight

35.4 kg

packaging

-

gtin

-

item number

1W10L00A3001

size

323.9 (DN300) orange

dimensions

619x619x324 mm

weight

52 kg

packaging

-

gtin

-

item number

1W10L00A3003

size

323.9 (DN300) galvanized

dimensions

619x619x324 mm

weight

52 kg

packaging

-

gtin

-

item number

1W10L00A4001

size

355.6 (DN350) orange

dimensions

711x711x356 mm

weight

64 kg

packaging

bag (1 pce)

gtin

08711985483154

item number

1W10L00A4003

size

355.6 (DN350) galvanized

dimensions

711x711x356 mm

weight

64 kg

packaging

-

gtin

-

item number

1W10L00A6001

size

406.4 (DN400) orange

dimensions

814x814x407 mm

weight

89 kg

packaging

bag (1 pce)

gtin

04710574450168

item number

1W10L00A6002

size

406.4 (DN400) red

dimensions

813x813x406 mm

weight

89 kg

packaging

-

gtin

-

item number

1W10L00A6003

size

406.4 (DN400) galvanized

dimensions

813x813x406 mm

weight

89 kg

packaging

-

gtin

-

item number

1W10L00A8001

size

457.2 (DN450) orange

dimensions

915x915x457 mm

weight

114.5 kg

packaging

-

gtin

-

item number

1W10L00A8002

size

457.2 (DN450) red

dimensions

915x915x457 mm

weight

114.5 kg

packaging

-

gtin

-

item number

1W10L00A8003

size

457.2 (DN450) galvanized

dimensions

915x915x457 mm

weight

114.5 kg

packaging

-

gtin

-

item number

1W10L00B0001

size

508 (DN500) orange

dimensions

1016x1016x508 mm

weight

134 kg

packaging

-

gtin

-

item number

1W10L00B0002

size

508 (DN500) red

dimensions

1016x1016x508 mm

weight

134 kg

packaging

-

gtin

-

item number

1W10L00B0003

size

508 (DN500) galvanized

dimensions

1016x1016x508 mm

weight

134 kg

packaging

-

gtin

-

item number

1W10L00B4001

size

609.6 (DN600) orange

dimensions

1219x1219x610 mm

weight

219 kg

packaging

-

gtin

-

item number

1W10L00B4002

size

609.6 (DN600) red

dimensions

1219x1219x610 mm

weight

219 kg

packaging

-

gtin

-

item number

1W10L00B4003

size

609.6 (DN600) galvanized

dimensions

1219x1219x610 mm

weight

219 kg

packaging

-

gtin

-

item number

size

d1

DN1

l1

d2

DN2

l2

angle

item number

1W10L00A1001

size

273 (DN250) orange

d1

273.0

DN1

DN250

l1

381

d2

273.0

DN2

DN250

l2

381

angle

90

item number

1W10L00A1003

size

273 (DN250) galvanized

d1

273.0

DN1

DN250

l1

381

d2

273.0

DN2

DN250

l2

381

angle

90

item number

1W10L00A3001

size

323.9 (DN300) orange

d1

323.9

DN1

DN300

l1

457

d2

323.9

DN2

DN300

l2

457

angle

90

item number

1W10L00A3003

size

323.9 (DN300) galvanized

d1

323.9

DN1

DN300

l1

457

d2

323.9

DN2

DN300

l2

457

angle

90

item number

1W10L00A4001

size

355.6 (DN350) orange

d1

355.6

DN1

DN350

l1

533

d2

355.6

DN2

DN350

l2

533

angle

90

item number

1W10L00A4003

size

355.6 (DN350) galvanized

d1

355.6

DN1

DN350

l1

533

d2

355.6

DN2

DN350

l2

533

angle

90

item number

1W10L00A6001

size

406.4 (DN400) orange

d1

406.4

DN1

DN400

l1

610

d2

406.4

DN2

DN400

l2

610

angle

90

item number

1W10L00A6002

size

406.4 (DN400) red

d1

406.4

DN1

DN400

l1

610

d2

406.4

DN2

DN400

l2

610

angle

90

item number

1W10L00A6003

size

406.4 (DN400) galvanized

d1

406.4

DN1

DN400

l1

610

d2

406.4

DN2

DN400

l2

610

angle

90

item number

1W10L00A8001

size

457.2 (DN450) orange

d1

457.2

DN1

DN450

l1

686

d2

457.2

DN2

DN450

l2

686

angle

90

item number

1W10L00A8002

size

457.2 (DN450) red

d1

457.2

DN1

DN450

l1

686

d2

457.2

DN2

DN450

l2

686

angle

90

item number

1W10L00A8003

size

457.2 (DN450) galvanized

d1

457.2

DN1

DN450

l1

686

d2

457.2

DN2

DN450

l2

686

angle

90

item number

1W10L00B0001

size

508 (DN500) orange

d1

508.0

DN1

DN500

l1

762

d2

508.0

DN2

DN500

l2

762

angle

90

item number

1W10L00B0002

size

508 (DN500) red

d1

508.0

DN1

DN500

l1

762

d2

508.0

DN2

DN500

l2

762

angle

90

item number

1W10L00B0003

size

508 (DN500) galvanized

d1

508.0

DN1

DN500

l1

762

d2

508.0

DN2

DN500

l2

762

angle

90

item number

1W10L00B4001

size

609.6 (DN600) orange

d1

609.6

DN1

DN600

l1

914

d2

609.6

DN2

DN600

l2

914

angle

90

item number

1W10L00B4002

size

609.6 (DN600) red

d1

609.6

DN1

DN600

l1

914

d2

609.6

DN2

DN600

l2

914

angle

90

item number

1W10L00B4003

size

609.6 (DN600) galvanized

d1

609.6

DN1

DN600

l1

914

d2

609.6

DN2

DN600

l2

914

angle

90

technical drawing for product

product info

item

VSH Shurjoint wrought long radius 90° elbow (2 x groove)

item number with gtin

W110LR

manufacturer

Shurjoint

weight

219 kg

dimensions

1219x1219x610 mm

characteristics

color

orange, silver, red

materials

steel (ASTM A53 Grade B)

finishing

varnished, hot dip galvanized

shape

Elbow, 90º

connection type

groove (fitting)

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

brand

VSH

series

Shurjoint

product type

W110LR

image for W110-Combi

image | png

W110-Combi

save to my IPS
image for Diagram

diagram | png

Diagram

save to my IPS

submittal sheet | pdf

Datasheet

save to my IPS

installation- & maintenance document | pdf

VSH Shurjoint installation instructions

save to my IPS
image for W110-GALV

image | png

W110-GALV

save to my IPS
image for W110-OR

image | png

W110-OR
