group: TP13
non-potable water
heating
potable water
commercial building
Watermark
item number
size
dimensions
weight
packaging
gtin
item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
angle
item number
size
16xR1/2
d1
16.0
DN1
DN12
l1
33
z1
9
d2
14.0
DN2
1/2" (DN15)
l2
33
z2
18
angle
90
item

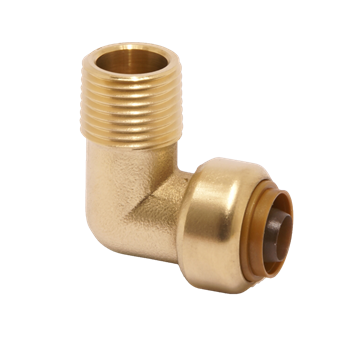

Tectite Pacific elbow connector
item number with gtin
TP13
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
size
16xR1/2
weight
0.07 kg
dimensions
46x27x40 mm
color
brass
materials
brass (CW602N (DZR))
finishing
none
shape
Elbow, 90º
connection type
push, R - male thread gas conical (BSPT)
pressure rating (PN)
PN 20
sealing
EPDM
max operating pressure liquid
20 bar
min. medium temperature
10 °C
max medium temperature
95 °C
peak medium temperature
95 °C
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connectionsbrand
VSH
series
Tectite Pacific
product type
TP13
UNSPS
40172801
label
value
label
etim-class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Bend angle
value
90°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Nominal diameter connection 1
value
DN 12
label
Outer pipe diameter connection 1
value
16mm
label
Outer pipe diameter connection 1 (imperial)
value
0.63"
label
Wall thickness, connection 1
value
1.2mm
label
Wall thickness, connection 1 (imperial)
value
0.05"
label
Connection 1
value
Insert (push-fitting)
label
Nominal diameter connection 2
value
1/2 inch (15)
label
Outer pipe diameter connection 2
value
14mm
label
Outer pipe diameter connection 2 (imperial)
value
0.55"
label
Connection 2
value
External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
label
Main colour fitting
value
Brass
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
Length
value
46mm
label
Length (imperial)
value
1.81"
label
Length of connection 1
value
33mm
label
Length of connection 1 (imperial)
value
1.3"
label
Working length connection 1
value
9mm
label
Working length connection 1 (imperial)
value
0.35"
label
Length of connection 2
value
32.5mm
label
Length of connection 2 (imperial)
value
1.28"
label
Working length connection 2
value
17.5mm
label
Working length connection 2 (imperial)
value
0.69"
label
Medium temperature (continuous)
value
10°C - 95°C
label
Medium temperature (continuous) (imperial)
value
50°F - 203°F
label
Max. operating pressure at 20 °C
value
20bar
label
Max. operating pressure at 20 °C (imperial)
value
290.08psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
