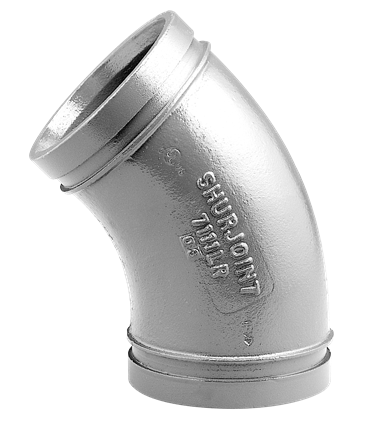

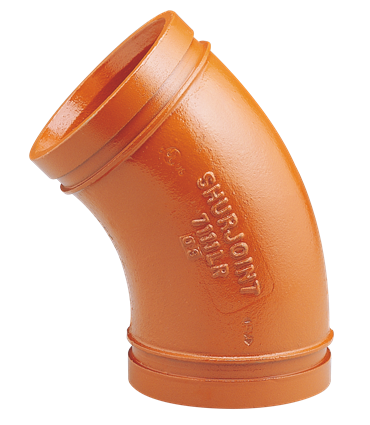

VSH Shurjoint 1.5D 45° elbow (2 x groove)

Product Image for VSH Shurjoint 1.5D 45° elbow (2 x groove)
Product Image for VSH Shurjoint 1.5D 45° elbow (2 x groove)
Product Image for VSH Shurjoint 1.5D 45° elbow (2 x groove)
  • Navigation item for VSH Shurjoint 1.5D 45° elbow (2 x groove)
  • Navigation item for VSH Shurjoint 1.5D 45° elbow (2 x groove)
  • Navigation item for VSH Shurjoint 1.5D 45° elbow (2 x groove)

group: 7111LR

Shurjoint grooved-end fittings are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

no applications available

segments

no segments available

approvals

CRN

CRN

show all
show less
  • assortment
  • dimensions
  • specifications
  • downloads
  • ETIM
  • sustainability

item number

size

dimensions

weight

packaging

gtin

item number

1111L0020001

size

60.3 (DN50) orange

dimensions

60x141x101 mm

weight

0.8 kg

packaging

-

gtin

-

item number

1111L0020003

size

60.3 (DN50) galvanized

dimensions

60x141x101 mm

weight

0.8 kg

packaging

-

gtin

-

item number

1111L0025001

size

73 (DN65) orange

dimensions

73x156x116 mm

weight

1.4 kg

packaging

-

gtin

-

item number

1111L0025003

size

73 (DN65) galvanized

dimensions

73x156x116 mm

weight

1.4 kg

packaging

-

gtin

-

item number

1111L0029001

size

76.1 (DN65) orange

dimensions

76x157x119 mm

weight

1.45 kg

packaging

-

gtin

-

item number

1111L0029003

size

76.1 (DN65) galvanized

dimensions

76x157x119 mm

weight

1.45 kg

packaging

-

gtin

-

item number

1111L0030001

size

88.9 (DN80) orange

dimensions

89x178x137 mm

weight

1.8 kg

packaging

-

gtin

-

item number

1111L0030003

size

88.9 (DN80) galvanized

dimensions

89x178x137 mm

weight

1.8 kg

packaging

-

gtin

-

item number

1111L0045001

size

114.3 (DN100) orange

dimensions

114x215x170 mm

weight

3.5 kg

packaging

-

gtin

-

item number

1111L0045003

size

114.3 (DN100) galvanized

dimensions

114x215x170 mm

weight

3.5 kg

packaging

-

gtin

-

item number

1111L0052001

size

139.7 (DN125) orange

dimensions

140x266x209 mm

weight

4.6 kg

packaging

-

gtin

-

item number

1111L0052003

size

139.7 (DN125) galvanized

dimensions

140x266x209 mm

weight

4.6 kg

packaging

-

gtin

-

item number

1111L0055001

size

141.3 (DN125) orange

dimensions

141x267x210 mm

weight

4.6 kg

packaging

-

gtin

-

item number

1111L0055003

size

141.3 (DN125) galvanized

dimensions

141x267x210 mm

weight

4.6 kg

packaging

-

gtin

-

item number

1111L0062001

size

165.1 (DN150) orange

dimensions

165x297x240 mm

weight

8.2 kg

packaging

-

gtin

-

item number

1111L0062003

size

165.1 (DN150) galvanized

dimensions

165x297x240 mm

weight

8.2 kg

packaging

-

gtin

-

item number

1111L0065001

size

168.3 (DN150) orange

dimensions

168x299x243 mm

weight

8.2 kg

packaging

-

gtin

-

item number

1111L0065003

size

168.3 (DN150) galvanized

dimensions

168x299x243 mm

weight

8.2 kg

packaging

-

gtin

-

item number

1111L0085001

size

219.1 (DN200) orange

dimensions

219x398x317 mm

weight

13.87 kg

packaging

-

gtin

-

item number

1111L0085003

size

219.1 (DN200) galvanized

dimensions

219x398x317 mm

weight

13.87 kg

packaging

-

gtin

-

item number

1111L00A1001

size

273 (DN250) orange

dimensions

273x465x386 mm

weight

22.86 kg

packaging

-

gtin

-

item number

1111L00A1002

size

273 (DN250) red

dimensions

273x465x386 mm

weight

22.86 kg

packaging

-

gtin

-

item number

1111L00A1003

size

273 (DN250) galvanized

dimensions

273x465x386 mm

weight

22.86 kg

packaging

-

gtin

-

item number

1111L00A3001

size

323.9 (DN300) orange

dimensions

324x548x456 mm

weight

33.5 kg

packaging

-

gtin

-

item number

1111L00A3003

size

323.9 (DN300) galvanized

dimensions

324x548x456 mm

weight

33.5 kg

packaging

-

gtin

-

item number

size

d1

DN1

l1

d2

DN2

l2

item number

1111L0020001

size

60.3 (DN50) orange

d1

60.3

DN1

DN50

l1

70

d2

60.3

DN2

DN50

l2

70

item number

1111L0020003

size

60.3 (DN50) galvanized

d1

60.3

DN1

DN50

l1

70

d2

60.3

DN2

DN50

l2

70

item number

1111L0025001

size

73 (DN65) orange

d1

73.0

DN1

DN65

l1

76

d2

73.0

DN2

DN65

l2

76

item number

1111L0025003

size

73 (DN65) galvanized

d1

73.0

DN1

DN65

l1

76

d2

73.0

DN2

DN65

l2

76

item number

1111L0029001

size

76.1 (DN65) orange

d1

76.1

DN1

DN65

l1

76

d2

76.1

DN2

DN65

l2

76

item number

1111L0029003

size

76.1 (DN65) galvanized

d1

76.1

DN1

DN65

l1

76

d2

76.1

DN2

DN65

l2

76

item number

1111L0030001

size

88.9 (DN80) orange

d1

88.9

DN1

DN80

l1

86

d2

88.9

DN2

DN80

l2

86

item number

1111L0030003

size

88.9 (DN80) galvanized

d1

88.9

DN1

DN80

l1

86

d2

88.9

DN2

DN80

l2

86

item number

1111L0045001

size

114.3 (DN100) orange

d1

114.3

DN1

DN100

l1

102

d2

114.3

DN2

DN100

l2

102

item number

1111L0045003

size

114.3 (DN100) galvanized

d1

114.3

DN1

DN100

l1

102

d2

114.3

DN2

DN100

l2

102

item number

1111L0052001

size

139.7 (DN125) orange

d1

139.7

DN1

DN125

l1

127

d2

139.7

DN2

DN125

l2

127

item number

1111L0052003

size

139.7 (DN125) galvanized

d1

139.7

DN1

DN125

l1

127

d2

139.7

DN2

DN125

l2

127

item number

1111L0055001

size

141.3 (DN125) orange

d1

141.3

DN1

DN125

l1

127

d2

141.3

DN2

DN125

l2

127

item number

1111L0055003

size

141.3 (DN125) galvanized

d1

141.3

DN1

DN125

l1

127

d2

141.3

DN2

DN125

l2

127

item number

1111L0062001

size

165.1 (DN150) orange

d1

165.1

DN1

DN150

l1

140

d2

165.1

DN2

DN150

l2

140

item number

1111L0062003

size

165.1 (DN150) galvanized

d1

165.1

DN1

DN150

l1

140

d2

165.1

DN2

DN150

l2

140

item number

1111L0065001

size

168.3 (DN150) orange

d1

168.3

DN1

DN150

l1

140

d2

168.3

DN2

DN150

l2

140

item number

1111L0065003

size

168.3 (DN150) galvanized

d1

168.3

DN1

DN150

l1

140

d2

168.3

DN2

DN150

l2

140

item number

1111L0085001

size

219.1 (DN200) orange

d1

219.1

DN1

DN200

l1

184

d2

219.1

DN2

DN200

l2

184

item number

1111L0085003

size

219.1 (DN200) galvanized

d1

219.1

DN1

DN200

l1

184

d2

219.1

DN2

DN200

l2

184

item number

1111L00A1001

size

273 (DN250) orange

d1

273.0

DN1

DN250

l1

216

d2

273.0

DN2

DN250

l2

216

item number

1111L00A1002

size

273 (DN250) red

d1

273.0

DN1

DN250

l1

216

d2

273.0

DN2

DN250

l2

216

item number

1111L00A1003

size

273 (DN250) galvanized

d1

273.0

DN1

DN250

l1

216

d2

273.0

DN2

DN250

l2

216

item number

1111L00A3001

size

323.9 (DN300) orange

d1

323.9

DN1

DN300

l1

254

d2

323.9

DN2

DN300

l2

254

item number

1111L00A3003

size

323.9 (DN300) galvanized

d1

323.9

DN1

DN300

l1

254

d2

323.9

DN2

DN300

l2

254

technical drawing for product

product info

item

VSH Shurjoint 1.5D 45° elbow (2 x groove)

item number with gtin

7111LR

manufacturer

Shurjoint

weight

33.5 kg

dimensions

324x548x456 mm

characteristics

color

orange, silver, red

materials

cast iron (ASTM A536 65-45-12)

finishing

varnished, hot dip galvanized

shape

Elbow

connection type

groove (fitting)

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

brand

VSH

series

Shurjoint

product type

7111LR

image for 7111

image | png

7111

save to my IPS
image for Diagram

diagram | png

Diagram

save to my IPS

submittal sheet | pdf

Datasheet

save to my IPS

installation- & maintenance document | pdf

VSH Shurjoint Installation Handbook

save to my IPS
image for 7111LR

image | png

7111LR

save to my IPS
image for 7111LR-GV

image | png

7111LR-GV

save to my IPS
image for 7111Red_p.png

image for printing | png


save to my IPS

label

value

label

etim-class

value

EC003024 Fitting with 2 connections

label

Material connection 1

value

Cast iron

label

Material quality connection 1

value

ASTM A536 Grade 65-45-12

label

Material connection 2

value

Cast iron

label

Material quality connection 2

value

ASTM A536 Grade 65-45-12

label

Shape

value

Bend

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Groove

label

Connection 2

value

Groove

label

With buffer stud

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

size

item number

1111L0020001

size

60.3 (DN50) orange

item number

1111L0020003

size

60.3 (DN50) galvanized

item number

1111L0025001

size

73 (DN65) orange

item number

1111L0025003

size

73 (DN65) galvanized

item number

1111L0029001

size

76.1 (DN65) orange

item number

1111L0029003

size

76.1 (DN65) galvanized

item number

1111L0030001

size

88.9 (DN80) orange

item number

1111L0030003

size

88.9 (DN80) galvanized

item number

1111L0045001

size

114.3 (DN100) orange

item number

1111L0045003

size

114.3 (DN100) galvanized

item number

1111L0052001

size

139.7 (DN125) orange

item number

1111L0052003

size

139.7 (DN125) galvanized

item number

1111L0055001

size

141.3 (DN125) orange

item number

1111L0055003

size

141.3 (DN125) galvanized

item number

1111L0062001

size

165.1 (DN150) orange

item number

1111L0062003

size

165.1 (DN150) galvanized

item number

1111L0065001

size

168.3 (DN150) orange

item number

1111L0065003

size

168.3 (DN150) galvanized

item number

1111L0085001

size

219.1 (DN200) orange

item number

1111L0085003

size

219.1 (DN200) galvanized

item number

1111L00A1001

size

273 (DN250) orange

item number

1111L00A1002

size

273 (DN250) red

item number

1111L00A1003

size

273 (DN250) galvanized

item number

1111L00A3001

size

323.9 (DN300) orange

item number

1111L00A3003

size

323.9 (DN300) galvanized

Got any questions?

we are here to help

contact
product selected products selected
add to list save to my IPS

You can compare up to 2 products

You can compare up to 4 products

saving downloads requires an account

register

added to my IPS

View View

choose your region

"mandatory*" indicates required fields

This field is for validation purposes and should be left unchanged.

NEW: myIPS including submittal package builder

streamline your projects effortlessly with our new submittal package builder! Compile, customize, and download our comprehensive product data sheets.

go to my IPS now!

Aalberts IPS now expanding in Australia

Providing advanced integrated piping systems and solutions tailored to the
Australian market.

Our product range includes:

  • VSH XPress 316 Stainless Steel Press-fit System
  • Apollo PowerPress Carbon Steel Press-fit System
  • VSH SmartPress Stainless Steel for Schedule 5 & 10 Pipes
  • VSH Tectite Push-fit System (PEX, Copper, Stainless Steel)
  • Pegler ProFlow Dynamic Balancing Valves
  • Fixing Systems (Brackets, Clips, Railings)
  • Coming Soon: ACR Copper Press-fit System for A/C Refrigeration

Become an official Aalberts IPS distributor

  • Gain exclusive access to premium products
  • Full marketing and technical support
  • Local support and resource
    Contact us to partner for success!
Contact us now

Contact information

For inquiries and distributor opportunities:
Reach out to our Head of Sales Australia via the contact page on our website.

for is a account required

log in
register

filter downloads

filters

by name or type

search

category

category
  • brochures (10)
  • technical manuals (10)
  • EPD (5)
  • embodied carbon calculations (5)

product line

product line
  • VSH XPress (17)
  • Pegler ProFlow (6)
  • Pegler Valve (6)
  • VSH PowerPress (6)

product type

product type
  • fittings (25)
  • valves (14)
  • measurement and accessories (2)
  • pipes (2)
show results

send by email

This field is for validation purposes and should be left unchanged.
optional
optional
optional
